Zone
Derrick & crown
Crown and derrick coverage in Ex-rated housings.
Zone
Drill floor & doghouse
View the drill floor from the doghouse and remote locations.
Zone
Rig floor — operations
Monitor drill floor operations in real time; red zone detection on the same feed.
Zone
Mud pumps
Monitor mud pumps and critical equipment; one Virtual PTZ covers several skids at once.
Zone
Shakers & solids control
Keep an eye on shakers and solids control equipment.
Zone
Pipe yard & backyard
Monitor the pipe yard, storage areas, and equipment — 30x zoom reads tallies from the turret.
Zone
Site entry
Monitor site access for increased security and documentation.
Zone
Internet & networking
Reliable high-speed internet for the manager, company man, and site operations.
Zone
Company man shacks
Connectivity and camera access for office and living quarters.
Zone
Yard & crew areas
Hands-free voice across the pad — intercom stations plus IS handhelds for crews on the move.
Zone
Crane & boom tip
Ex-rated boom-tip camera, 25x zoom, up to four cameras to one in-cab display.
Zone
Platform deck
Platform camera system with analytics on the same feed.
Zone
Living quarters & control room
Monitors, intercom stations, and the connection that carries them ashore.
Zone
Drill floor & moon pool
Zone-rated voice where the work is loudest.
Zone
Wellhead
Internal wellhead cleaning, 7″–22″ ID, multi-stage and ROV configurations.
Zone
Subsea — trash cap
Fabricated to your dimensions for marine and drilling environments.
Zone
Subsea — net guard
Protection and containment, custom size, configuration, and mounting.
Base illustrations supplied by Royal. Marker positions and the product list behind each marker are maintained as part of the managed website service.
Common Questions
Where the gear goes
The questions customers actually type — and the questions they now ask an AI assistant. Answered directly, and marked up so the answer can be quoted.
Which cameras go where on a drilling rig?

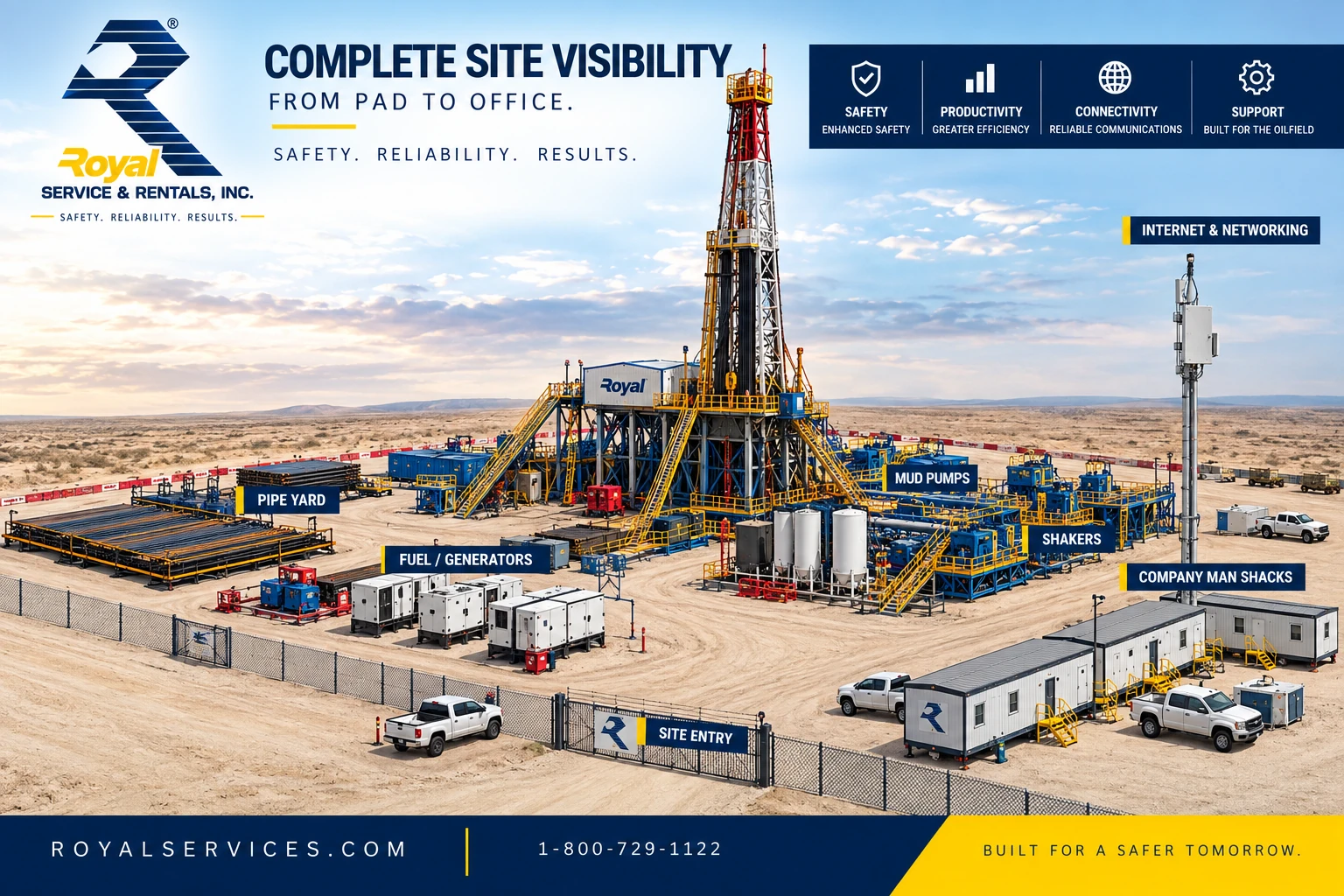

On a land rig, Royal typically covers the drill floor from the doghouse (board camera), the rig floor, the substructure, the mud pumps, the shakers, the pipe yard and backyard, and the site entry — plus internet and networking at the company man shacks.

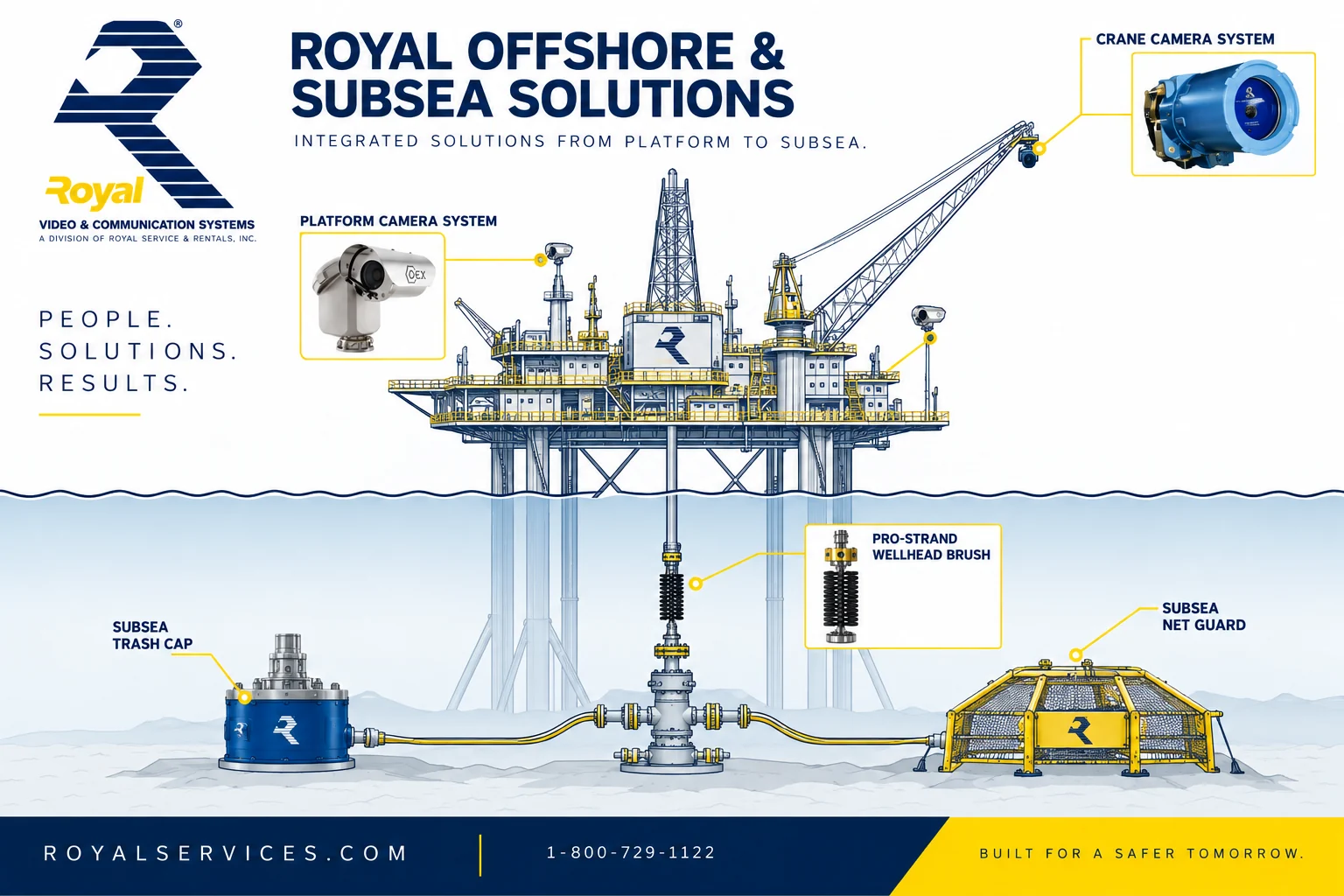

What Royal equipment goes subsea?
Subsea, Royal supplies trash caps and net guards fabricated to specification, and Pro-Strand clean out brushes for internal wellhead cleaning, including ROV-operated configurations.
Can one camera system cover a whole pad?
A Virtual PTZ camera produces two to four independent side-by-side views from one camera, which covers several areas at once; larger pads combine fixed cameras, turrets, and Virtual PTZ.
